Swineshead Medical Group Solar Installation
The Swineshead Medical Group solar installation case study covers commercial project planning, roof design, inverter selection, battery storage context and handover notes.
Project Overview: Leading Commercial Solar Installer
Install Solar Panels UK, a leading commercial solar installer with over 8 years of experience, was selected to design and install a large-scale solar panel system for Swineshead Medical Group in Lincolnshire. This commercial solar installation demonstrates our expertise in healthcare facility solar solutions, delivering sustainable energy for essential medical services.
As an MCS-certified commercial solar installer, we provide complete transparency throughout the installation process. This project showcases our commitment to professional service, from initial remote survey and 3D design through to final commissioning and MCS certification.
Commercial Solar Installer Planning & Design Phase
Our commercial solar installer team utilizes advanced remote surveying technology and specialized software to create precise, optimized solar panel layouts for maximum energy generation.
Detailed Roof Measurements & Solar Analysis

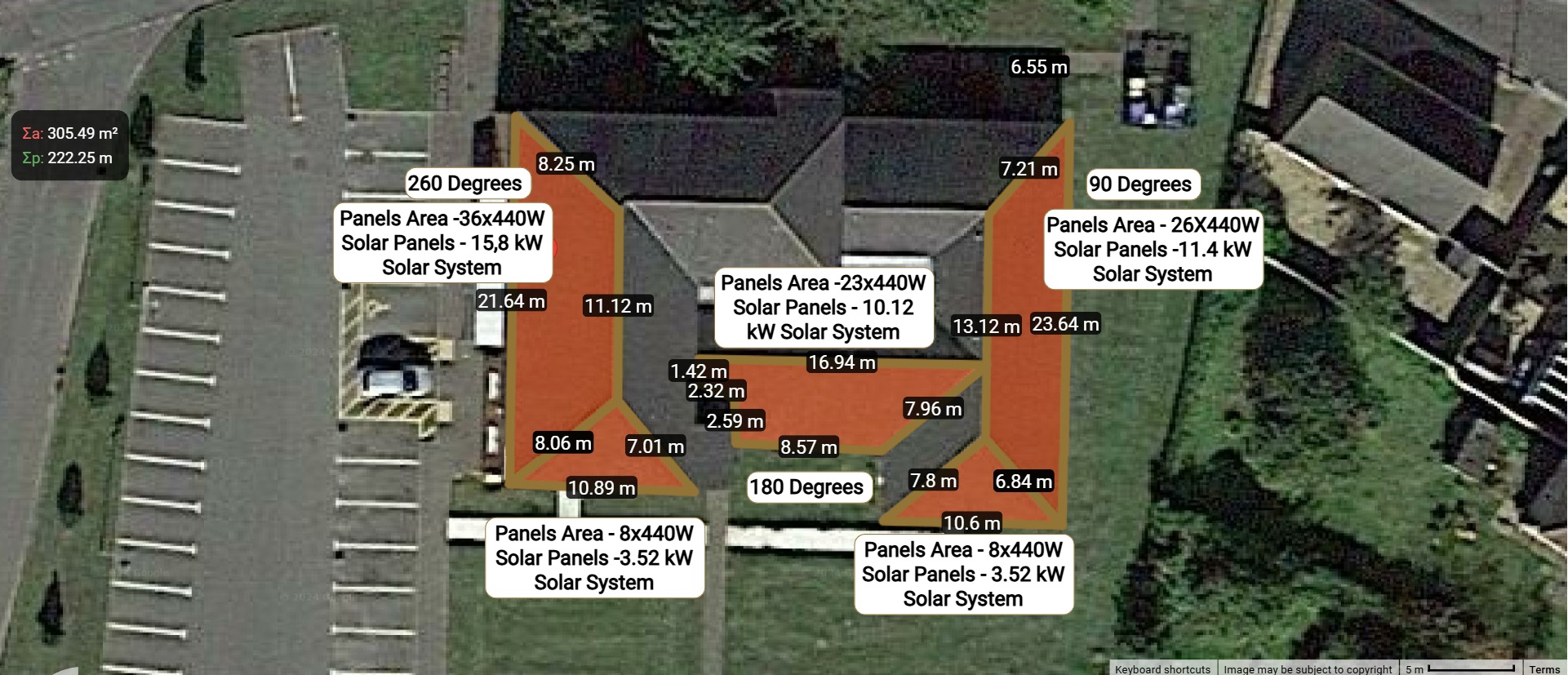

Using satellite imagery and specialized measurement software, our commercial solar installer team accurately assessed the Swineshead Medical Group building, identifying five optimal roof sections for solar panel installation. The system design includes:
- West Roof (260°): 36 × 440W panels = 15.8 kW system
- Central Roof (180°): 23 × 440W panels = 10.12 kW system
- East Roof (90°): 26 × 440W panels = 11.4 kW system
- South Wing Roofs (180°): 2 × 8 panels = 7.04 kW combined
- Total System Capacity: 101 panels = 44.44 kWp

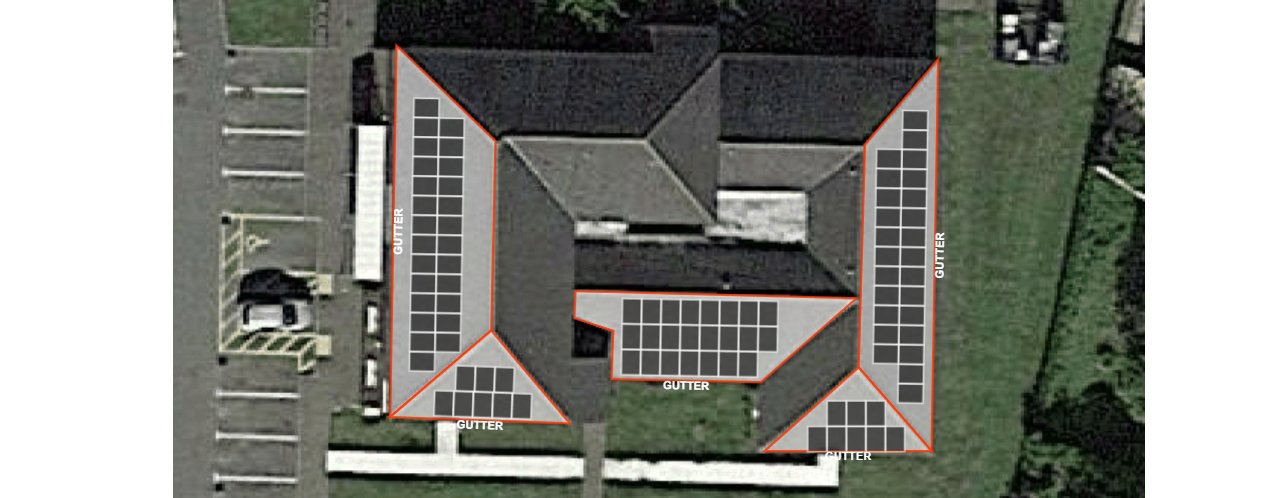

Optimized Panel Layout Design
Our commercial solar installer design team created a comprehensive layout showing the exact positioning of all 101 premium black solar panels. This aerial view illustrates how we maximized roof space while accounting for chimneys, vents, and other roof structures to ensure optimal performance and aesthetic appeal.

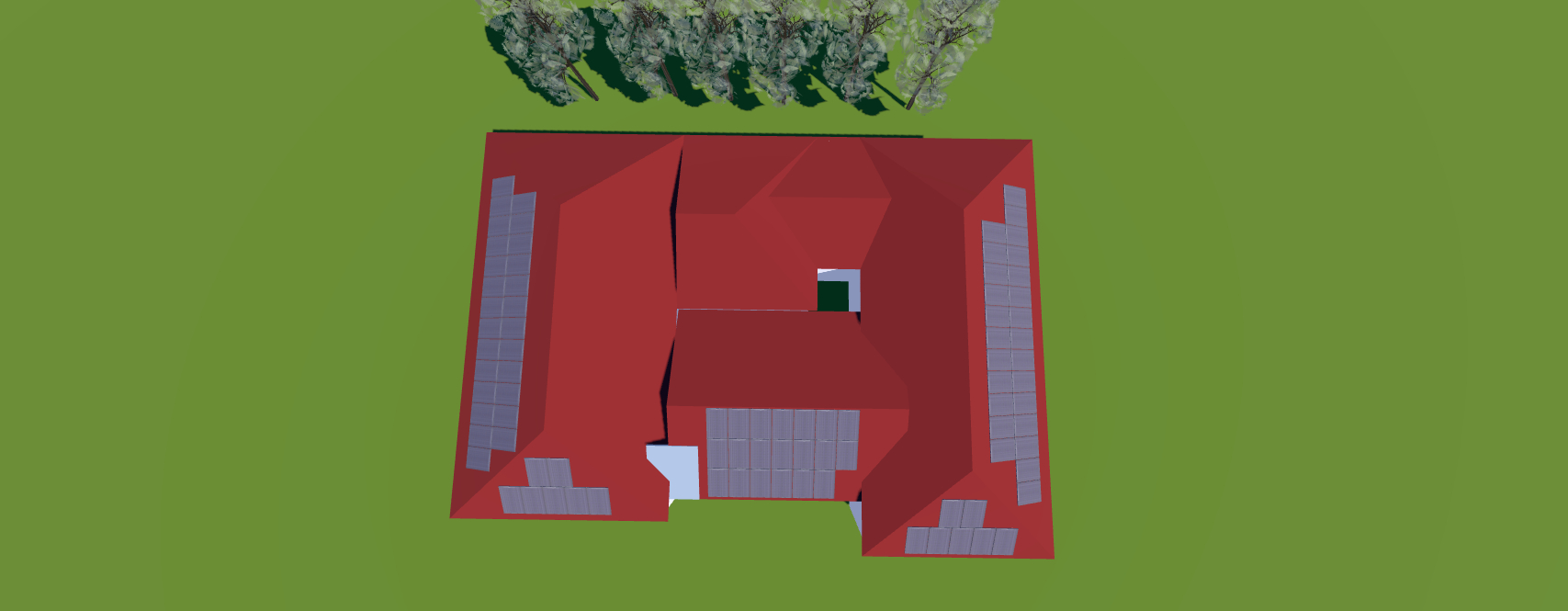

3D Solar Panel System Visualization
As an innovative commercial solar installer, we provide clients with detailed 3D representations of their solar panel system before installation begins. This visualization helped Swineshead Medical Group understand exactly how the panels would look on their building and allowed us to optimize panel placement considering surrounding structures and potential shading from nearby trees.
Solar Panels
- Quantity: 101 panels
- Model: JA Solar 440W Premium Black
- Technology: N-type Bifacial Double Glass
- Total Capacity: 44.44 kWp
Installation Features

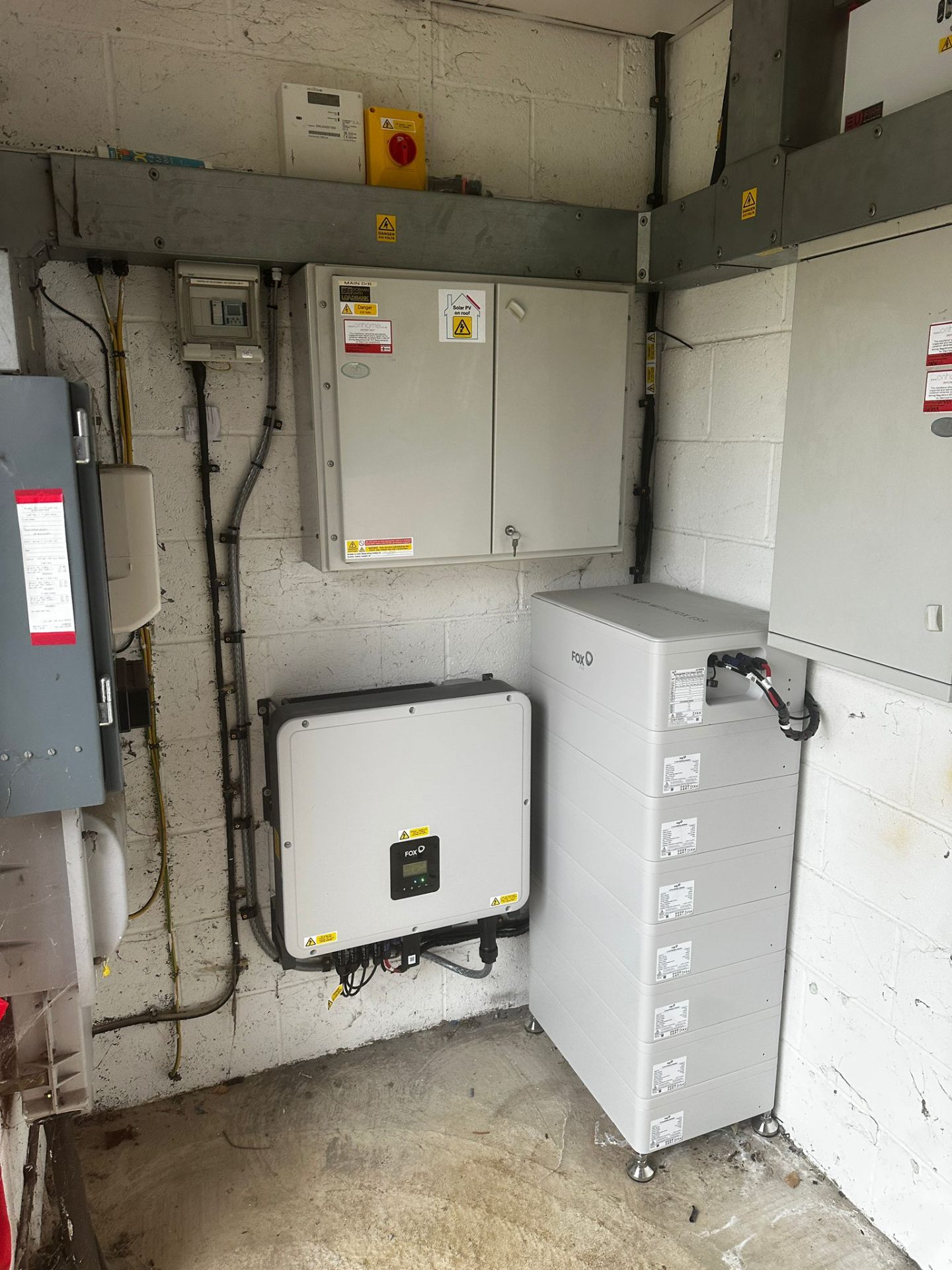

- Hybrid Inverter System
- Battery Storage Options
- Professional Scaffolding
- MCS Certified Installation
- Full Warranty Coverage
Why Choose JA Solar Premium Panels?
As an experienced commercial solar installer, we selected JA Solar's premium black bifacial panels for this medical centre installation due to their exceptional performance characteristics:
- Bifacial Technology: Generates additional power from reflected light (albedo), adding up to 90W per panel
- Total Peak Output: Up to 530W per panel with optimal reflection
- Low Light-Induced Degradation: N-type cells minimize performance loss over time
- Enhanced Durability: Double glass construction provides superior weather resistance
- Premium Aesthetics: All-black design suits professional medical facility appearance

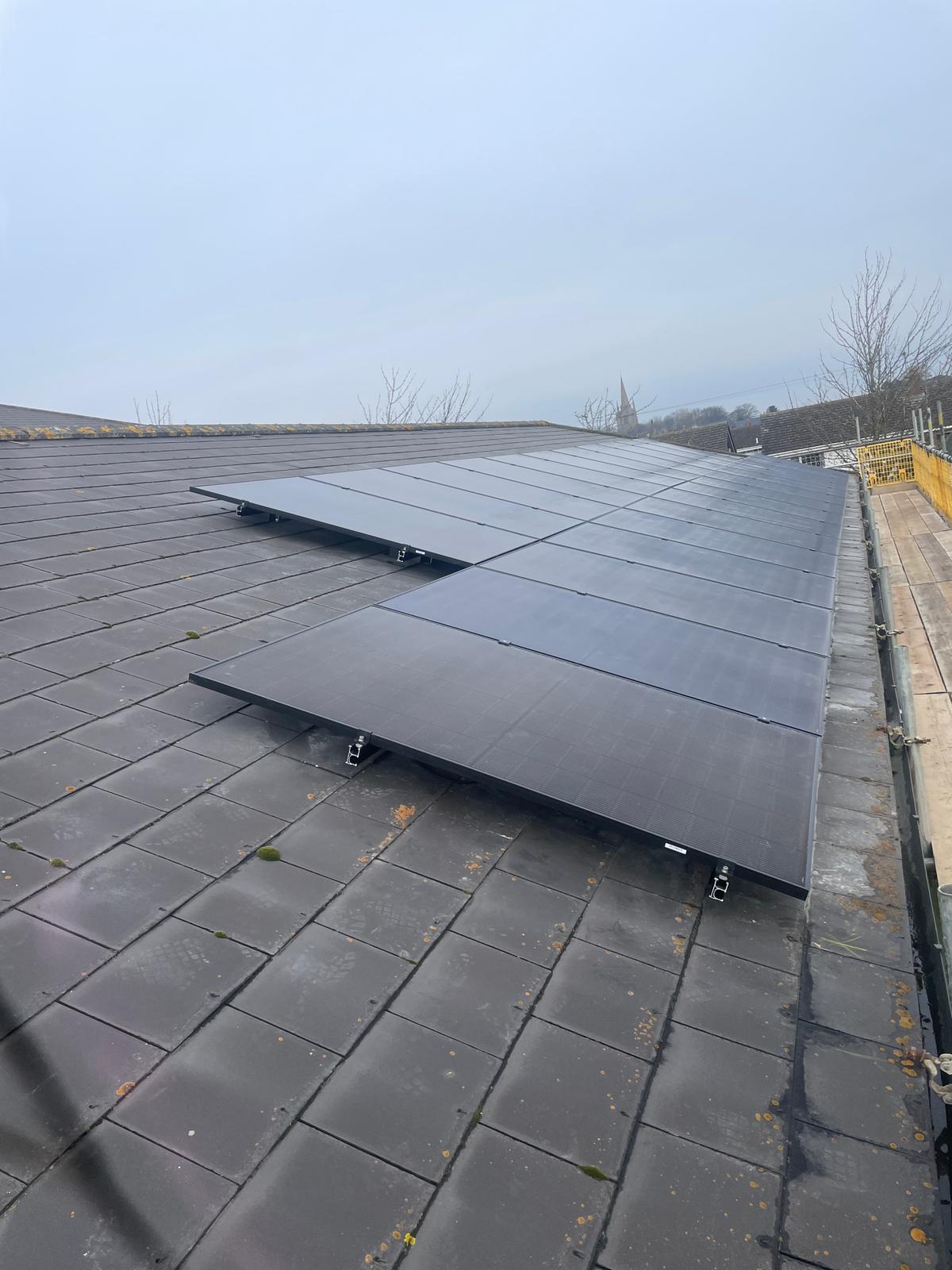

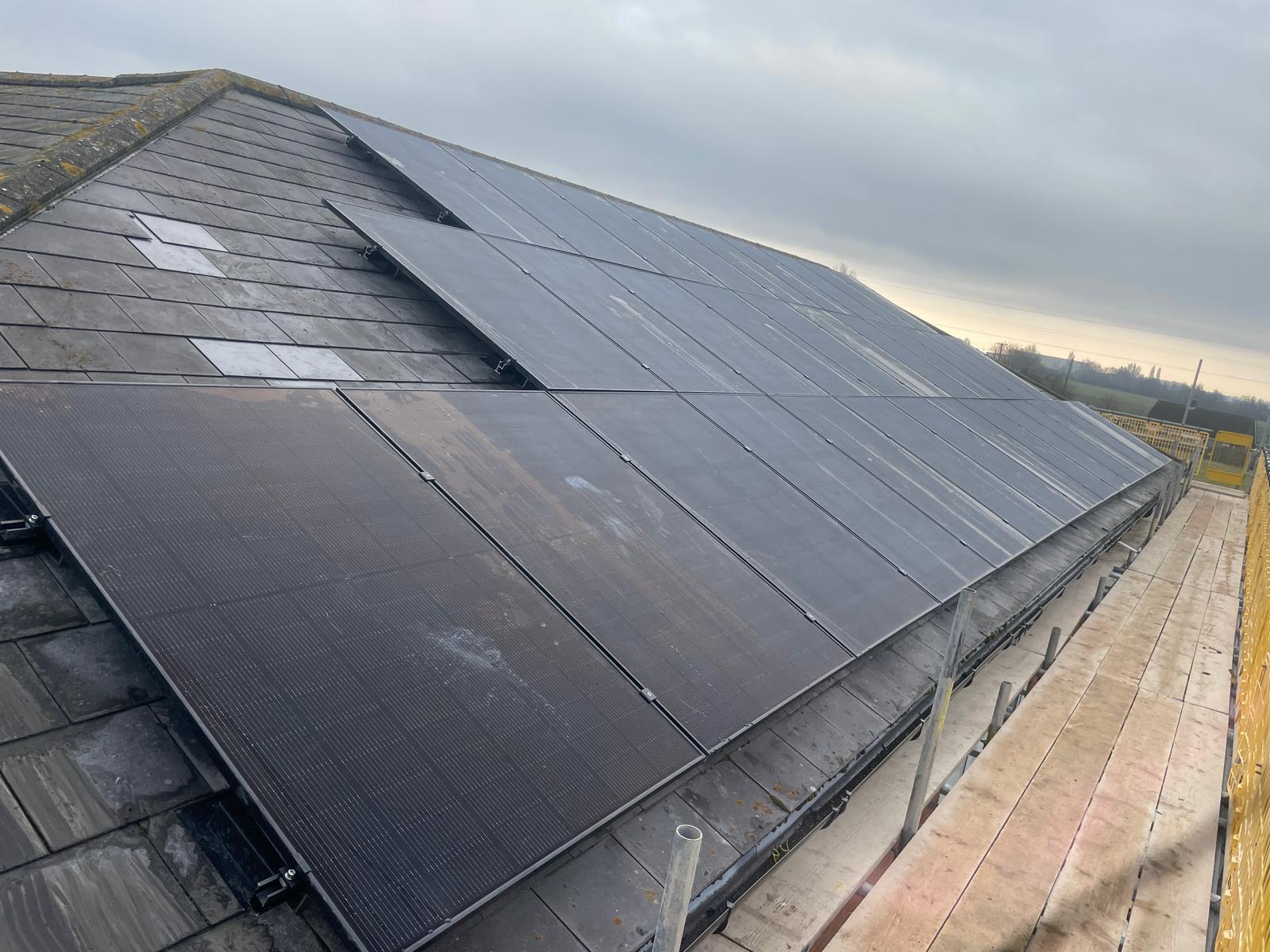

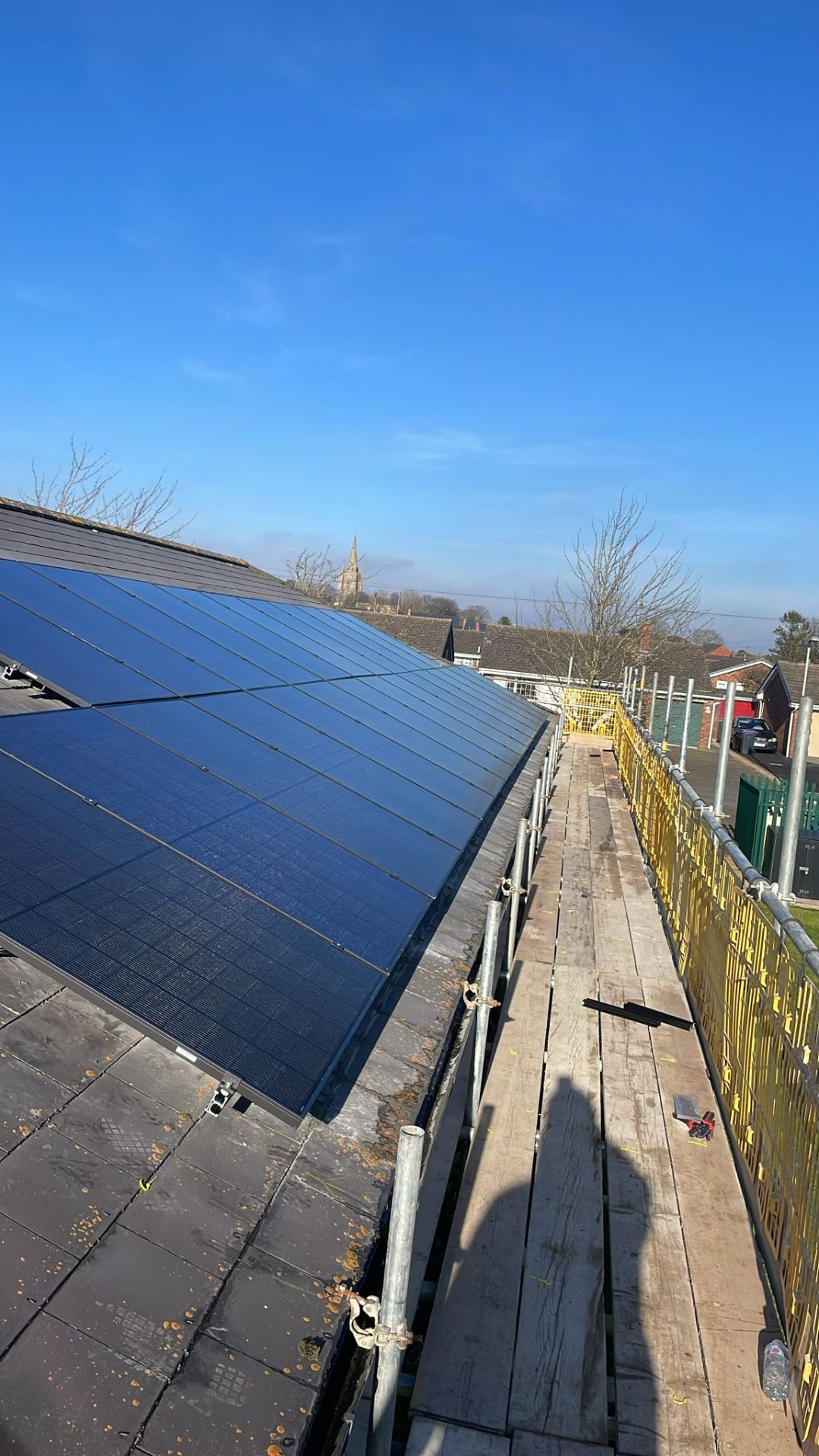

Commercial Solar Installation in Progress

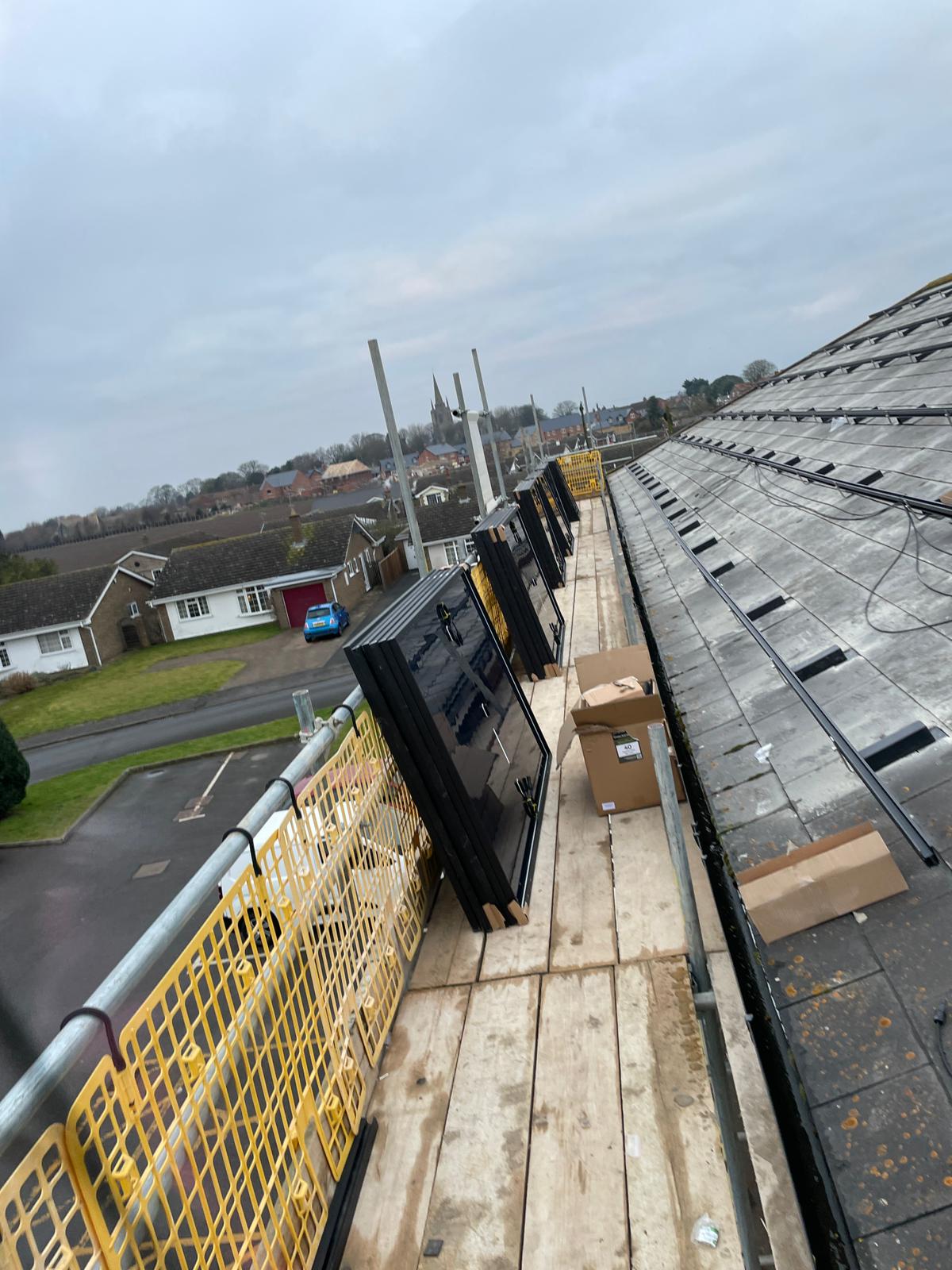

Our professional commercial solar installer team worked efficiently throughout the installation, utilizing comprehensive scaffolding for safe access to all roof sections. The following images showcase the various stages of the installation process.
Professional Installation Process
As a certified commercial solar installer, Install Solar Panels UK follows strict safety protocols and quality standards throughout every installation:

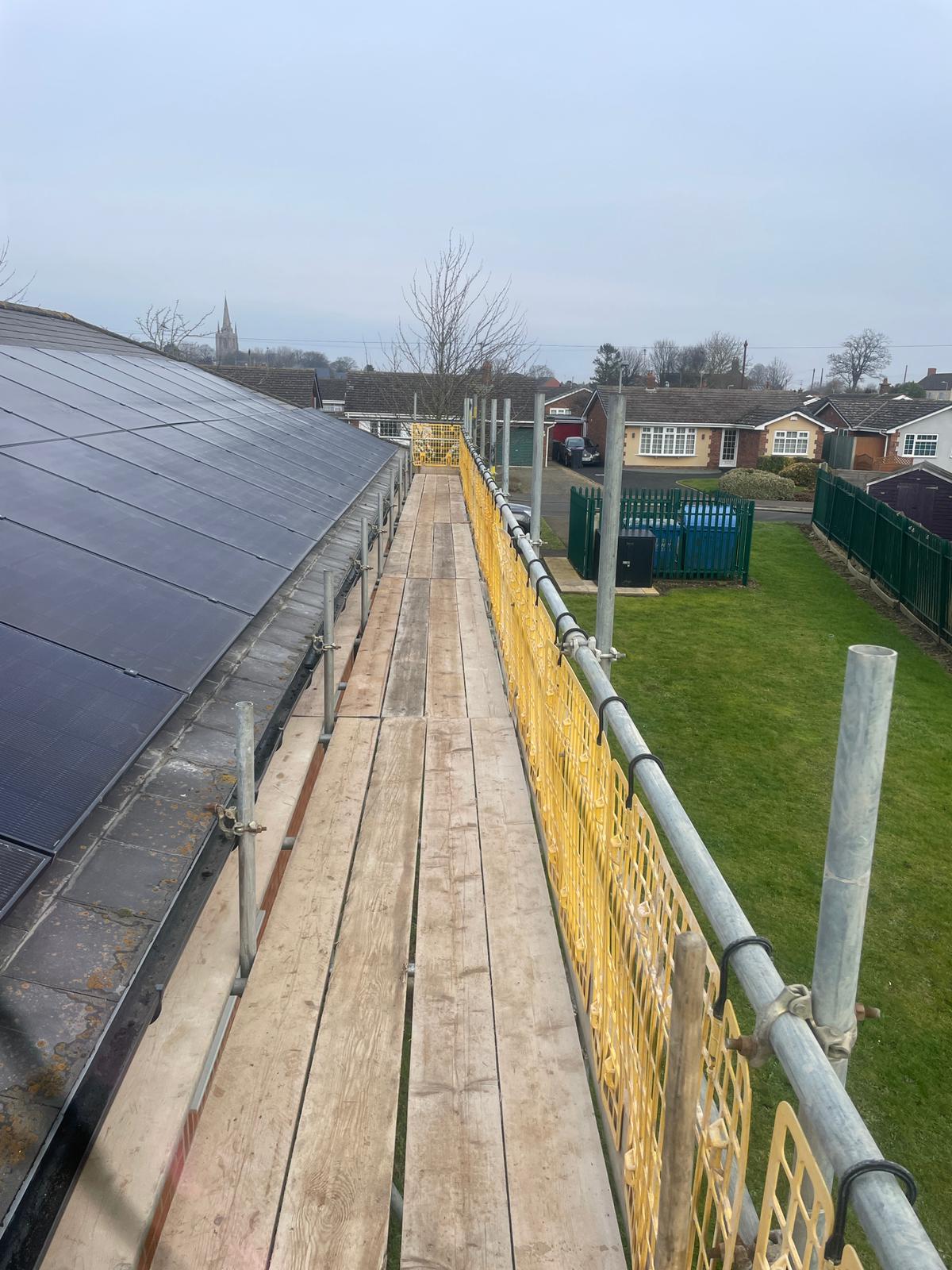

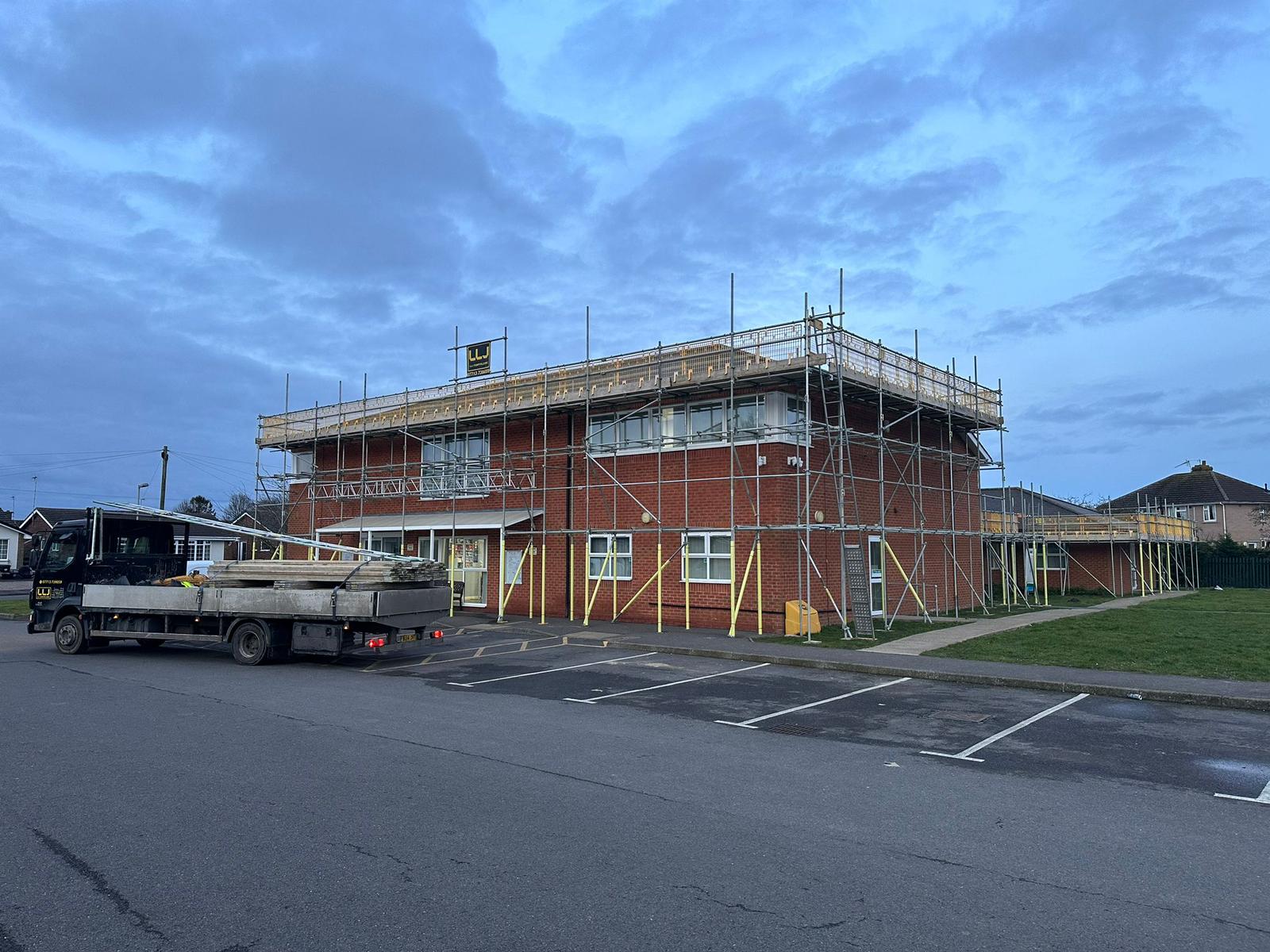

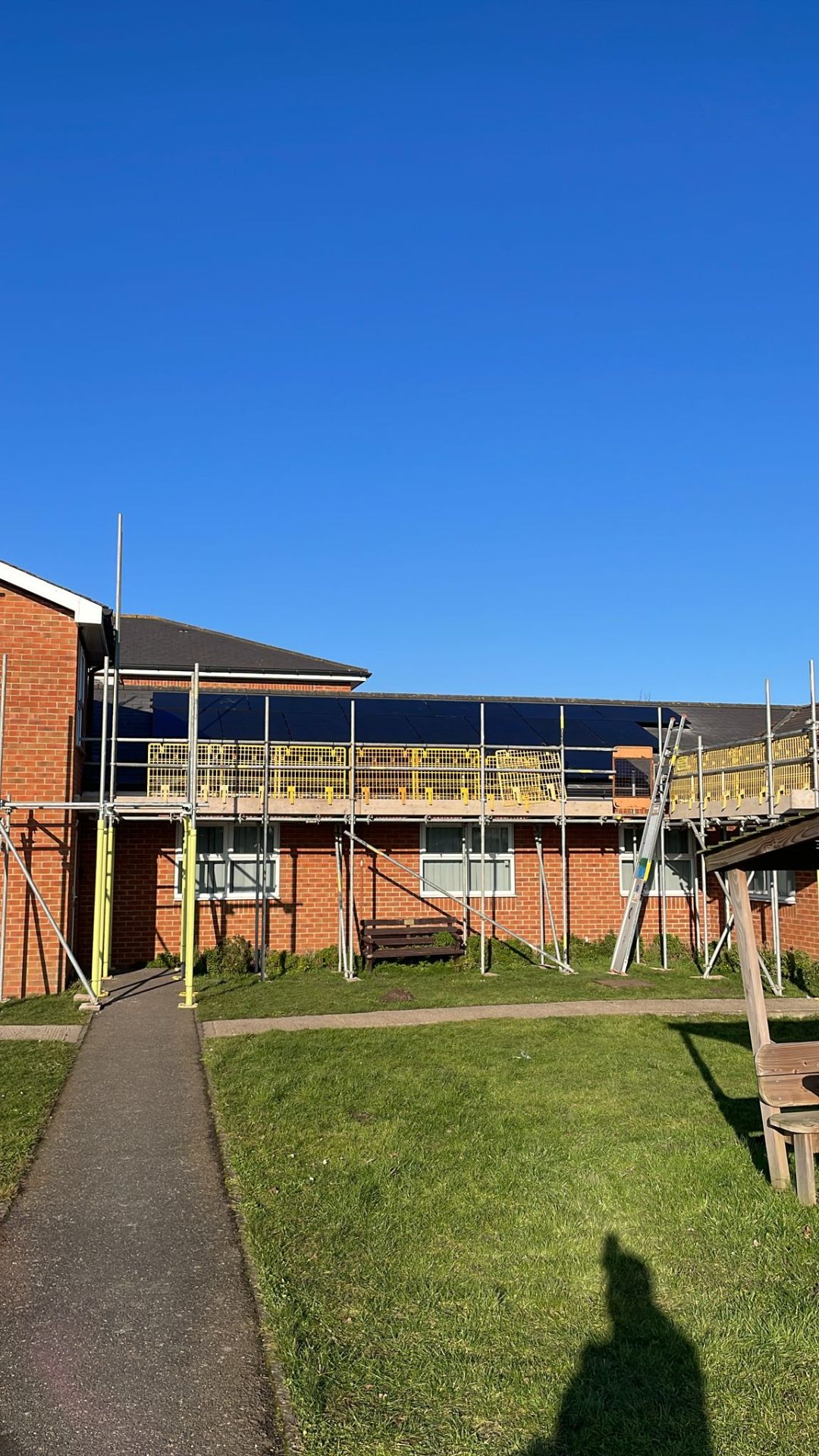

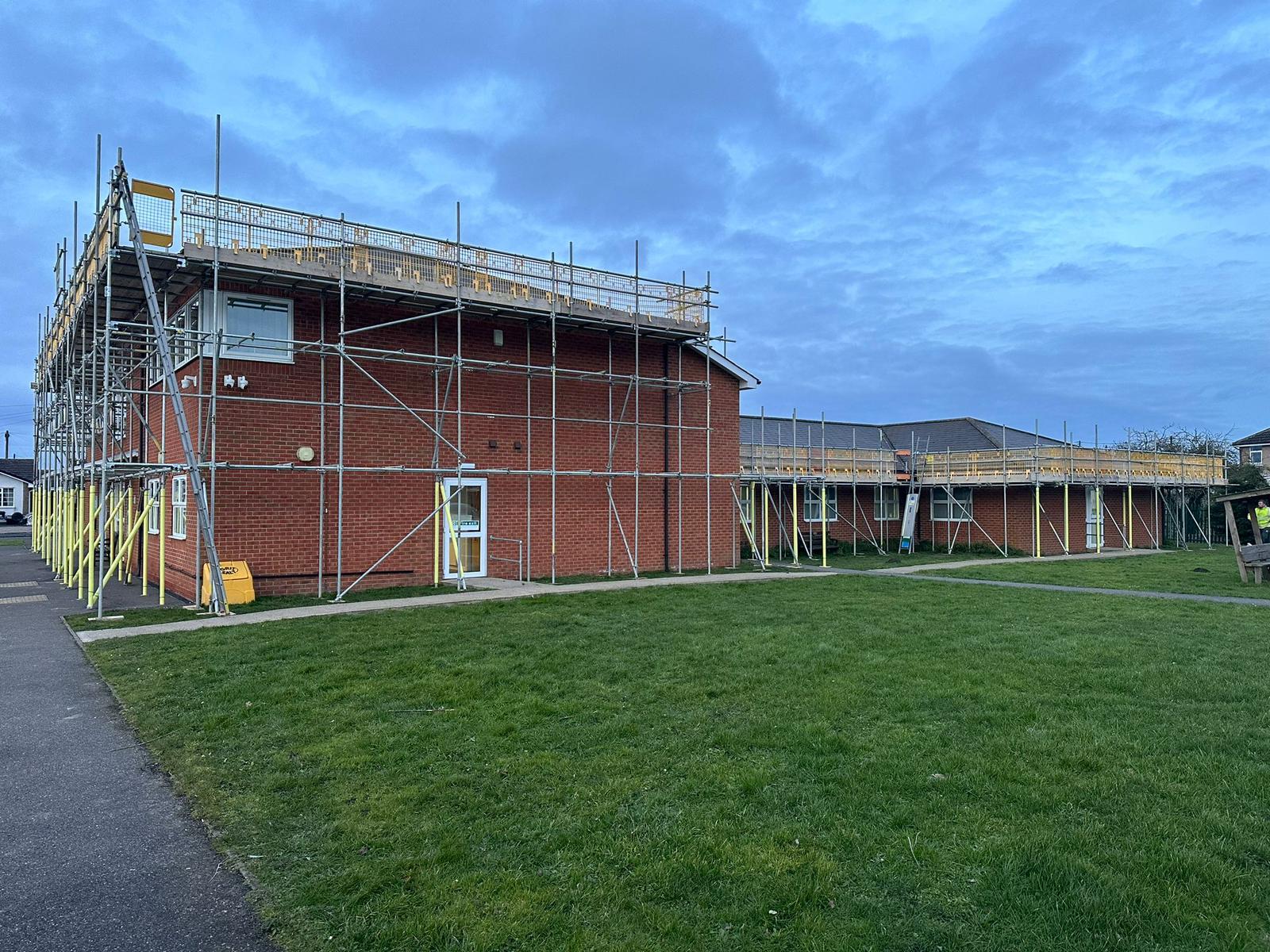

- Comprehensive Scaffolding: Full perimeter scaffolding erected 2 days before installation for safe roof access
- Experienced Team: Minimum 3-person installation team ensuring efficient, professional work
- Quality Materials: Premium mounting systems and cabling for long-term reliability
- Minimal Disruption: Installation completed efficiently to minimize impact on medical centre operations
- Health & Safety First: Full risk assessments and safety measures throughout the project
